Slitting Rewinding Machine

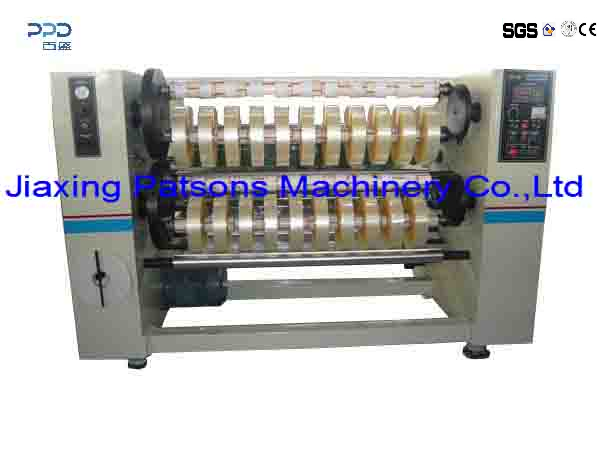

Bopp Adhesive Tape Slitter Rewinder Machine
PPD-BOPP
Machine is high speed,automatic 4 shaft exchange for high speed produciton,with complete production line,we offer:Main slitter rewinder
Paper core cutter
Core Loader/Unloader
Doctor roll rewinder
Main specs:
1. Model: PPD-210-1690 four shafts exchange slitting machine
2. Function : Ideal for BOPP/OPP packing tape slitting
3. Technical parameter
3.1 Material width 1690mm
3.2 Max. unload diameter Ф800mm
3.3 Max. rewinding diameter Ф180mm
3.4 Slitting width 12-1690mm
3.5 Rewind paper core Ф3″
3.6 Slitting blade razor knife
3.7 machine speed(max.) 180m/min
3.8 Power 380V 60Hz 3Phase
3.9 Air compressor 5KG(customer self provide)
4. Main equipment
4.1 Main drive motor (Teco AC7.5HP) 1set
4.2 Inverter(shilin) 1set
4.3 Rewinding shaft(aluminum alloy) 4pcs
4.4 Idler pulley(aluminum alloy) 3pcs
4.5 Drive empaistic roller( Teflon) 3pcs
4.6 length counter ( 3 stage) 1set
4.7 razor knife 200pcs
4.8 round blade(76mm) 16 pcs
4.9 tension control(5kg air pressure brake) 1set
4.10 unwinding shaft(Ф3&Ф6 inch air shaft) Each 1set
4.11 rubber roller 2sets
4.12 aluminum mould(die) 1set
4.13 PE tube 3pcs
4.14 toolbox 1set
5. Accessory Machine
5.1 core loader (PPD-105) 1 set
5.2 paper core cutter(PPD-203) 1 set
5.3 mini doctor rewinder (PPD-200) 1 set
Note:
We will upgrade the technical specs without a note.
The standard model of PPD1280 is available for buyer option.
The different specs,please free to inform us for customized model.
Bopp Adhesive Tape Slitter Rewinder Mach, BOPP Tape Slitting Rewinder
