Four Side Sealing & Packaging Machine

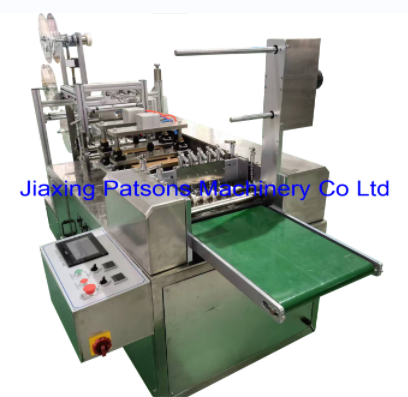

GABA Flash-Release Tablet Packaging Machine
PPD-ODF120
GABA flash-release tablet packaging machine is suitable for single-piece packaging of GABA flash-release tablets, glutathione SOD superoxide dismutase flash-release tablets, probiotic flash-release tablets, etc.This machine uses PLC programmable controller and servo motor to control the operation of the whole machine, automatic feeding, automatic cutting, automatic heat sealing, automatic packaging, stable operation.
The whole machine uses acrylic visual window, you can see the packaging process.
Efficient and stable heat sealing structure, the machine maintains continuous flat pressure heat sealing. The heat sealing time is adjustable, and the heat sealing effect is good.
It comes with a longitudinal slitting system, which can realize slitting and packaging.
Main:
Model: PPD-ODF120
Product size: L30 mm × W20 mm
Bag size: L68 mm × W50 mm
Capacity: 120-160 bags/min
Packaging film material: heat-sealable composite packaging films, Φ≤320mm, width≤400mm
Voltage: 220v 50Hz
Power: Motor 4KW Heating 3KW
Gas consumption: ≥30m3/h (self-provided), pressure: 0.6-0.8Mpa
Machine weight: 800 kg
