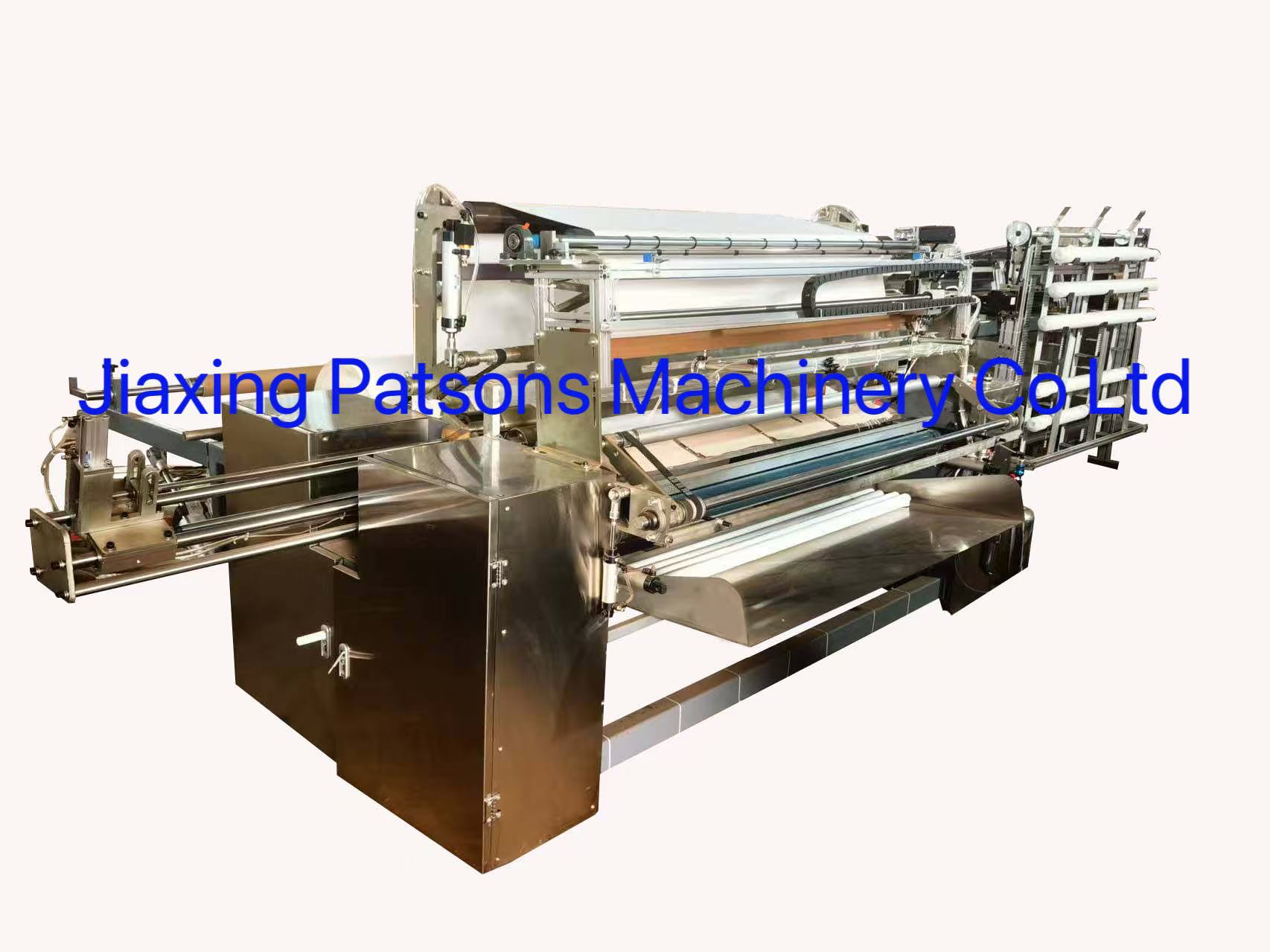

Fully Automatic Medical Gauze Roll Slitting Production Line

PPD-GRCM

Fully automatic medical gauze roll slitting production line consists of two parts, gauze roll rewinding and gauze roll slitting. Gauze roll rewinding parts can rewind a gauze jumbo roll into small rolls, the length can be adjustable. The small rolls after winding are automatically conveyed to the slitting machine by the conveying device, and the slitting is fast and accurate.
Machine features:
1. The machine is made of stainless steel material, which meets production standards.
2. Automatic rewinding, automatic conveying, automatic slitting, the machine achieves automatic integrated operation, reducing personnel costs.
3. The cutting blade is sharp, the cutting edge is neat, and there are no burrs.

Main Data:
Model: PPD-GRCM
Roll width: Max 1250mm
Mother roll inner diameter: 76cm (3inch)
Mother roll outer diameter: max 700mm
Product roll inner diameter: 10mm
Product roll outer diameter: 20-40mm
Rewinding speed: 20m/min
Cutting width: adjustable
Cutting speed: 80-120 cut/min
Voltage: 380V, 3ph, 50hz



Medical gauze roll slitting production l, Gauze roll cutting machine, Gauze roll rewinding machine
